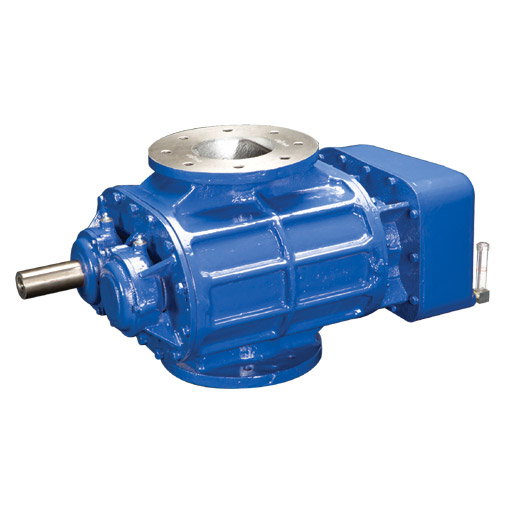

SR500

Highlights

Model No.	SR500
Specification	Twin Lobe Blower
Gear Center mm.	196.9 mm
Swept Vol. Per Rev. lit/rev.	50.0 lit/rev.
Air Flow m³/hr	2550-6200 m³/hr
Max. Pressure m bar	760 m bar
Max.Speed rpm	2300 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	2646	9.8	2530	18.3	2459	26.7	2407	35.2	2357	43.6
1500	4019	15.6	3963	28.4	3920	41.2	3873	54	3825	66.8
2000	5536	22.1	5437	39.3	5381	56.5	5339	73.7	5294	90.9

Pressure RISE mbar	600 mbar		700 mbar
Blower speed rpm	m³/h	KW	m³/h	KW
1000	2304	52.1	2249	67.5
1500	3770	79.6	3709	92.4
2000	5235	108.1	5169	125.3

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	2631	9.6	2489	18.1	2394	26.5	2271	34.9	2092	43.4
1500	4076	15.2	3947	28	3861	40.7	3733	53.5	3528	66.2
2000	5522	21.3	5404	38.5	5328	55.6	5196	72.7	4965	89.9
