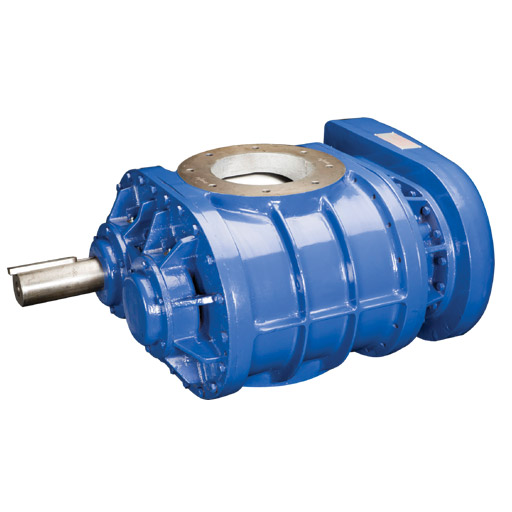

SR363

Highlights

Model No.	SR363
Specification	Twin Lobe Blower
Gear Center mm.	196.9 mm
Swept Vol. Per Rev. lit/rev.	36.3 lit/rev.
Air Flow m³/hr	1360-4380 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	2300 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1897	7.2	1804	13.3	1742	19.4	1691	25.5	1646	31.6
1500	2944	11.5	2862	20.7	2607	29.9	2759	39.2	2714	48.4
2000	3992	16.3	3920	28.7	3872	41.1	3826	53.5	3782	65.9

Pressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1603	37.7	1562	43.8	1523	49.9	1487	56	1451	62.1
1500	2669	57.6	2627	66.8	2586	76.1	2546	85.3	2507	94.5
2000	3736	78.3	3692	90.7	3648	103.1	3605	115.5

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1884	7.1	1770	13.1	1679	19.2	1578	25.3	1456	31.4
1500	2933	11.2	2832	20.4	2747	29.6	2643	38.8	2512	48
2000	3981	15.7	3894	28.1	3815	40.4	3709	52.8	3568	65.1
