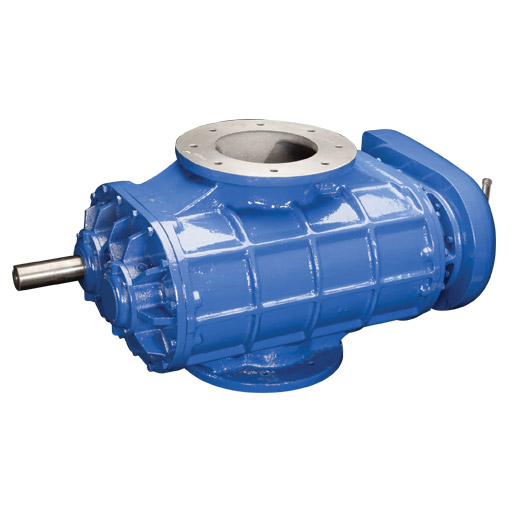

SR295

Highlights

Model No.	SR295
Specification	Twin Lobe Blower
Gear Center mm.	152.4 mm
Swept Vol. Per Rev. lit/rev.	29.5 lit/rev.
Air Flow m³/hr	1100-4680 m³/hr
Max. Pressure m bar	550 m bar
Max.Speed rpm	3000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1543	5.6	1427	10.6	1341	15.5	1278	20.5	1227	25.4
1500	2402	8.8	2293	16.2	2211	23.7	2150	31.1	2099	38.6
2000	3261	12.2	3159	22.2	3081	32.2	3021	42.1	2970	52.1
2500	4120	15.9	4025	28.4	3951	40.9	3893	53.4	3842	65.9
3000	4979	19.8	4891	34.9	4821	50	4765	65	4713	80.1

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1528	5.6	1881	10.5	1264	15.4	1156	20.4	1022	25.3
1500	2388	8.7	2249	16.1	2136	23.5	2025	31	1879	38.4
2000	3248	12	3118	21.9	3007	31.9	2894	41.8	2736	51.7
2500	4108	15.5	3986	28	3879	40.4	3763	52.9	3592	65.3
3000	4968	19.3	4854	34.3	4751	49.3	4633	64.3	4449	79.2
