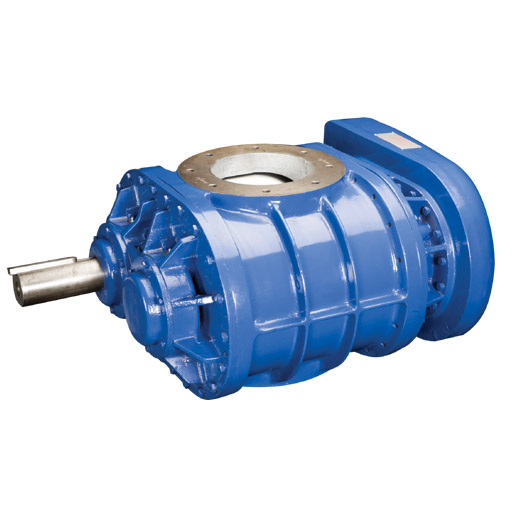

SR272

Highlights

Model No.	SR272
Specification	Twin Lobe Blower
Gear Center mm.	196.9 mm
Swept Vol. Per Rev. lit/rev.	27.2 lit/rev.
Air Flow m³/hr	930-3200 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	2300 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1412	5.5	1328	10.1	1270	14.7	1224	19.2	1181	23.8
1500	2202	8.8	2127	15.7	2074	22.7	2028	29.6	1986	36.5
2000	2993	12.5	2926	21.8	2877	31.1	2633	40.4	2790	49.7

Pressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1141	28.4	1105	32.9	1072	37.5	1041	42.1	1011	46.6
1500	1943	43.4	1906	50.3	1872	57.2	1839	64.2	1808	71.1
2000	2746	59	2708	68.3	2671	77.6	2637	86.9	2604	96.2

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	1401	5.4	1297	10	1212	14.5	1118	19.1	1015	23.6
1500	2193	8.6	2098	15.5	2017	22.4	1920	29.3	1812	36.2
2000	2984	12.1	2900	21.4	2822	30.6	2722	39.9	2608	49.1
