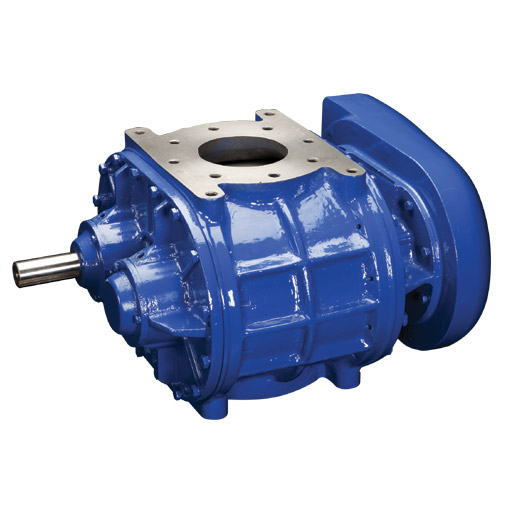

SR170

Highlights

Model No.	SR170
Specification	Twin Lobe Blower
Gear Center mm.	152.4 mm
Swept Vol. Per Rev. lit/rev.	17.0 lit/rev.
Air Flow m³/hr	760-2680 m³/hr
Max. Pressure m bar	700 m bar
Max.Speed rpm	3000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	809	3.2	758	5.9	723	8.7	682	11.4	663	14.2
1500	1294	4.9	1246	9.1	1217	13.3	1188	17.5	1159	21.7
2000	1778	6.8	1739	12.5	1710	18.2	1683	23.9	1655	29.6
2500	2263	8.9	2229	16.1	2203	23.3	2178	30.5	2151	37.7
3000	2748	11.1	2719	19.8	2697	28.6	2674	37.4	26.47	46.1

Pressure RISE mbar	600 mbar		700 mbar
Blower speed rpm	m³/h	KW	m³/h	KW
1000	634	17	606	19.7
1500	1129	25.9
2000	1625	35.3	1595	40.9
2500	2120	44.9	2090	52.1
3000	2616	54.9	2584	63.7

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	801	3.2	739	5.9	685	8.7	617	11.4	527	14.2
1500	1286	4.9	1232	9.1	1180	13.3	1112	17.5	1015	21.7
2000	1772	6.8	1724	12.5	1976	18.2	1607	23.9	1503	29.6
2500	2257	8.9	2216	16.1	2171	23.3	2102	30.5	1991	37.7
3000	2742	11.1	2708	19.8	2667	28.6	2596	37.4	2479	46.1
