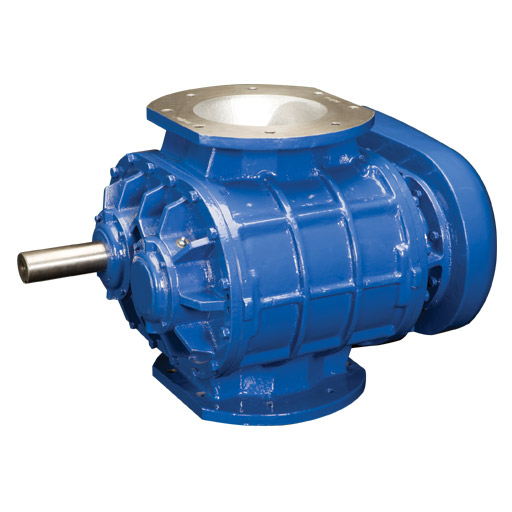

SR160

Highlights

Model No.	SR160
Specification	Twin Lobe Blower
Gear Center mm.	152.4 mm
Swept Vol. Per Rev. lit/rev.	16.0 lit/rev.
Air Flow m³/hr	750-2500 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	3000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	816	3.3	737	5.8	709	8.5	641	11.2	603	13.9
1500	1283	4.9	1206	9	1182	13	1116	17.1	1077	21.2
2000	1751	6.8	1680	12.2	1656	17.7	1590	23.2	1551	28.6
2500	2218	8.8	2151	15.7	2129	22.5	2064	29.4	2025	36.2
3000	2686	10.9	2622	19.2	2603	27.5	2539	35.7	2500	44

Pressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	574	16.6	545	19.3	520	22	496	24.7	472	27.4
1500	1047	25.3	1018	39.3	990	33.4	964	37.5	938	41.5
2000	1521	34.1	1290	39.5	1461	45	1432	50.4	1404	55.9
2500	1995	43.1	1962	49.8	1931	56.8	1901	63.6	1870	70.5
3000	2468	52.3	2234	60.6	2401	68.8	2369	77.1	2336	85.4

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	806	3.1	717	5.8	626	8.4	556	11.1	475	13.8
1500	1274	4.7	1189	8.8	1101	12.8	1029	16.9	942	20.9
2000	1742	6.5	1662	11.9	1575	17.3	1502	22.7	1403	28.1
2500	2210	8.4	2134	15.2	2049	21.9	1975	28.7	1874	35.5
3000	2677	10.4	2607	18.5	2524	26.7	2448	34.8	2340	43
