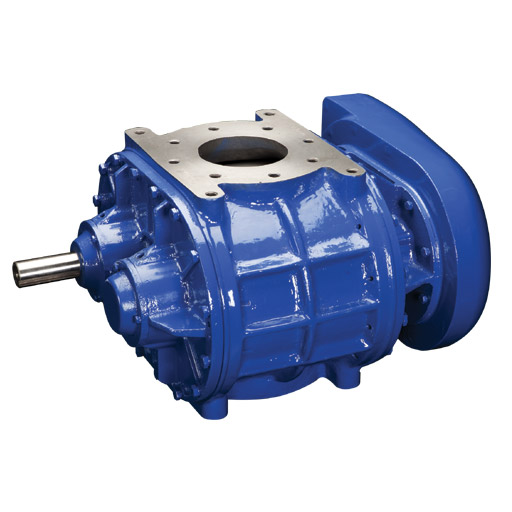

SR142

Highlights

Model No.	SR142
Specification	Twin Lobe Blower
Gear Center mm.	152.4 mm
Swept Vol. Per Rev. lit/rev.	14.2 lit/rev.
Air Flow m³/hr	510-2040 m³/hr
Max. Pressure m bar	830 m bar
Max.Speed rpm	3000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	698	2.6	651	4.9	614	7.2	562	9.5	553	11.8
1500	1102	4.1	1060	7.6	1025	11.1	995	14.6	966	18.1
2000	1506	5.8	1468	10.5	1436	15.2	1408	20	1379	24.7
2500	1909	7.5	1876	13.5	1847	19.5	1820	25.5	1792	31.5
3000	2313	9.4	2285	16.7	2258	24	2233	31.3	2206	38.6

Pressure RISE mbar	600 mbar		700 mbar		800 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW
1000	525	14.1	498	16.4	472	18.7
1500	937	21.6	910	25.1	833	28.6
2000	1360	29.4	1322	34.2	1293	38.9
2500	1763	37.5	1734	43.5	1704	49.5
3000	2176	45.9	2146	53.2	21.14	60.5

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	692	2.6	632	4.9	575	7.2	508	9.5	425	11.8
1500	1096	4.1	1042	7.6	987	11.1	920	14.6	832	18.1
2000	1501	5.8	1452	10.5	1400	15.2	1333	20	1238	24.7
2500	1905	7.5	1862	13.5	1813	19.5	1745	25.5	1645	31.5
3000	2309	9.4	2272	16.7	2226	24	2157	31.3	2051	38.6
