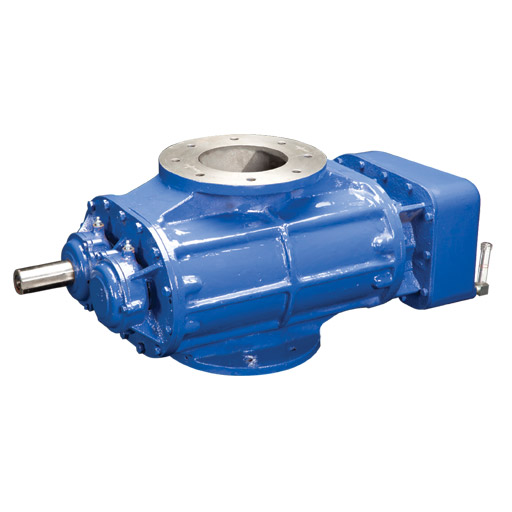

SR124

Highlights

Model No.	SR124
Specification	Twin Lobe Blower
Gear Center mm.	117.0 mm
Swept Vol. Per Rev. lit/rev.	12.4 lit/rev.
Air Flow m³/hr	590-2300 m³/hr
Max. Pressure m bar	550 m bar
Max.Speed rpm	3500 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	629	2.3	569	4.3	524	6.4	489	8.5	459	10.5
1500	989	3.5	931	6.6	889	9.8	855	12.9	829	16
2000	1348	4.9	1293	9.1	1253	13.2	1221	17.4	1192	21.6
2500	1707	6.3	1656	11.6	1617	16.8	1587	22.1	1559	27.3
3000	2067	7.9	2018	14.2	1982	20.5	1963	26.8	1925	33.1
3500	2426	9.5	2380	16.9	2346	24.3	2319	31.7	2292	39.1

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	622	2.2	545	4.3	481	6.4
1500	982	3.5	908	6.6	847	9.7	783	12.8	714	15.9
2000	1341	4.8	1272	9	1213	13.1	1150	17.3	1080	21.5
2500	1701	6.2	1635	11.5	1580	16.7	1517	21.9	1457	27.1
3000	2061	7.7	1999	14	1946	20.3	1884	26.6	1813	32.9
3500	2420	9.3	2362	16.7	2312	24	2251	31.4	2179	38.7
