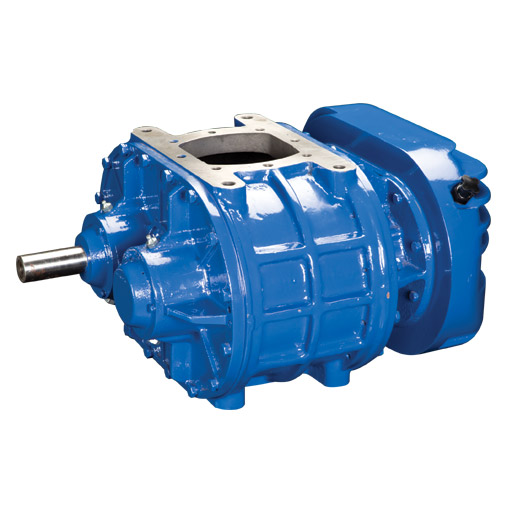

SR113

Highlights

Model No.	SR113
Specification	Twin Lobe Blower
Gear Center mm.	152.4 mm
Swept Vol. Per Rev. lit/rev.	11.3 lit/rev.
Air Flow m³/hr	420-1700 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	3000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	569	2.1	531	4	498	5.8	471	7.6	443	9.5
1500	892	3.3	857	6.1	827	8.9	801	11.7	774	14.5
2000	1215	4.7	1184	8.5	1115	12.2	1130	16	1104	19.8
2500	1537	6.1	1510	10.9	1484	15.7	1460	20.5	1434	25.3
3000	1860	7.7	1837	13.5	1813	19.4	1790	25.2	1765	31.1

Pressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	419	11.3	395	13.1	370	15	346	16.8	323	18.6
1500	749	17.3	724	20.1	698	22.9	673	25.7	648	28.5
2000	1079	23.6	1053	27.4	1027	31.2	999	35	973	38.7
2500	1409	30.1	1383	34.9	1355	39.7	1325	44.5	1298	49.3
3000	1739	36.9	1712	42.7	1683	48.6	1652	54.4	1622	60.3

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	564	2.1	514	4	464	5.8	404	7.6	326	9.5
1500	887	3.3	842	6.1	794	8.9	734	11.7	651	14.5
2000	1211	4.7	1170	8.5	1124	12.2	1063	16	976	19.8
2500	1534	6.1	1497	10.9	1454	15.7	1393	20.5	1301	25.3
3000	1857	7.7	1825	13.5	1784	19.4	1723	25.2	1626	31.1
