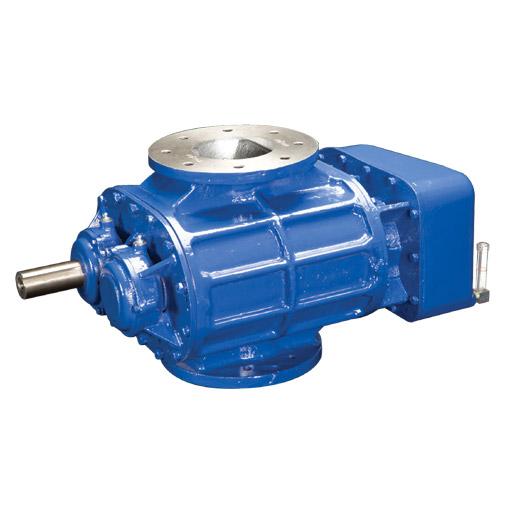

SR091

Highlights

Model No.	SR091
Specification	Twin Lobe Blower
Gear Center mm.	117.0 mm
Swept Vol. Per Rev. lit/rev.	9.1 lit/rev.
Air Flow m³/hr	430-1670 m³/hr
Max. Pressure m bar	760 m bar
Max.Speed rpm	3500 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	460	1.7	418	3.2	386	4.7	361	6.2	338	7.8
1500	724	2.6	685	4.9	655	7.2	630	9.5	608	11.8
2000	988	3.6	951	6.7	923	9.7	899	12.8	877	15.9
2500	1253	4.6	1216	8.5	1191	12.4	169	16.2	1147	20.1
3000	1517	5.6	1484	10.4	1459	15.1	1438	19.7	1417	24.3
3500	1782	7	1751	12.4	1727	17.6	1707	23.3	1687	28.7

Pressure RISE mbar	600 mbar		700 mbar
Blower speed rpm	m³/h	KW	m³/h	KW
1000	316	9.3	301	10.8
1500	588	14.1	571	16.4
2000	858	18.9	841	22
2500	1128	23.9	1111	27.8
3000	1398	29	1881	33.6
3500	1668	34.2	1651	39.6

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	454	1.6	401	3.2	355	4.7	308	6.2
1500	719	2.5	669	4.8	624	7.1	578	9.4	526	11.7
2000	983	3.5	936	6.6	893	9.6	848	12.7	795	15.8
2500	1248	4.5	1204	8.4	1163	12.2	1118	16.1	1063	19.9
3000	1513	5.6	1471	10.2	1432	14.9	1388	19.5	1332	24.1
3500	1777	6.8	1738	12.2	1702	17.6	1658	23	1601	28.4
