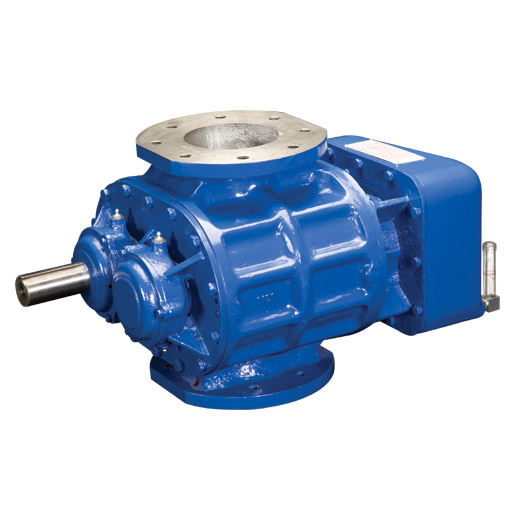

SR069

Highlights

Model No.	SR069
Specification	Twin Lobe Blower
Gear Center mm.	117.0 mm
Swept Vol. Per Rev. lit/rev.	6.9 lit/rev.
Air Flow m³/hr	330-1250 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	3500 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	340	1.2	300	2.4	271	3.6	246	4.7	226	5.9
1500	540	1.9	502	3.7	474	5.4	449	7.2	430	8.9
2000	740	2.7	704	5	677	7.3	653	9.7	635	12
2500	940	3.5	905	6.4	880	9.3	857	12.3	639	15.2
3000	1140	4.3	1107	7.9	1082	11.4	1061	14.9	1043	18.4
3500	1340	5.2	1309	9.4	1285	13.5	1264	17.6	1247	21.7

Pressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	209	7	193	8.2	179	9.3	166	10.5	153	11.6
1500	413	10.6	397	12.4	383	14.1	370	15.9	356	17.6
2000	617	14.3	601	16.7	587	19	573	21.3	560	23.6
2500	622	18.1	806	21	791	23.9	777	26.8	763	29.8
3000	1026	21.9	1010	25.4	995	28.9	981	32.5	966	36
3500	1230	25.8	1214	29.9	1199	34	1184	38.2	1170	42.3

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	335	1.2	285	2.4	240	3.5	199	4.7	155	5.8
1500	535	1.9	487	3.6	444	5.4	403	7.1
2000	735	2.6	689	4.9	648	7.3	607	9.6	561	11.9
2500	935	3.4	892	6.3	852	9.2	812	12.1	765	15
3000	1136	4.2	1094	7.7	1056	11.2	1016	14.7	968	18.2
3500	1336	5	1296	9.1	1259	13.2	1220	17.3	1117	21.4
