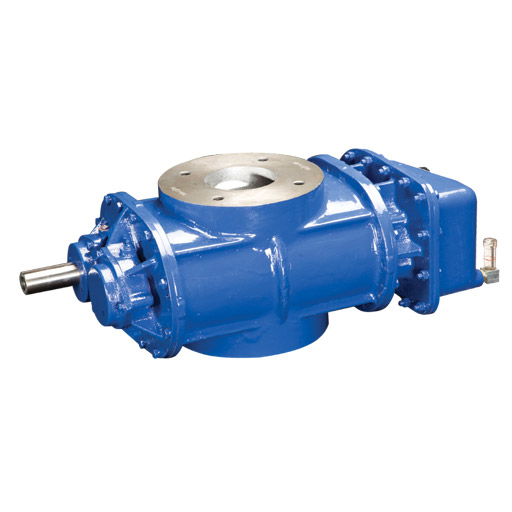

SR052

Highlights

Model No.	SR052
Specification	Twin Lobe Blower
Gear Center mm.	90.0 mm
Swept Vol. Per Rev. lit/rev.	5.2 lit/rev.
Air Flow m³/hr	170-1060 m³/hr
Max. Pressure m bar	700 m bar
Max.Speed rpm	4000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	239	1	211	1.9	189	2.6	171	3.7	155	4.5
1500	390	1.5	362	2.9	341	4.2	324	5.5	308	6.9
2000	541	2.1	514	3.9	439	5.7	476	7.4	460	9.2
2500	691	2.7	666	4.9	646	7.1	628	9.4	613	11.5
3000	842	3.3	817	6	798	8.7	781	11.3	765	14
3500	993	4	969	7.1	950	10.2	933	13.3	918	16.4
4000	1144	4.6	1120	8.2	1102	11.6	1086	15.3	1070	18.9

Pressure RISE mbar	600 mbar		700 mbar
Blower speed rpm	m³/h	KW	m³/h	KW
1000	140	5.4	127	6.3
1500	293	8.2	279	9.5
2000	446	11	432	12.7
2500	598	13.8	585	16
3000	751	16.6	737	19.3
3500	903	19.6	890	22.6
4000	1056	22.5	1043	26

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	235	1	-	-	-	-	-	-	-	-
1500	386	1.5	351	2.8	319	4.1	285	5.4	242	6.7
2000	537	2.1	503	3.8	472	5.6	437	7.3	259	9
2500	688	2.7	655	4.8	624	7	590	9.2	547	11.4
3000	839	3.3	807	5.9	777	8.5	742	11.1	700	13.7
3500	989	3.9	959	6.9	929	10	895	13	853	16.1
4000	1140	4.6	1111	8	1081	11.5	1048	15	1005	18.5
