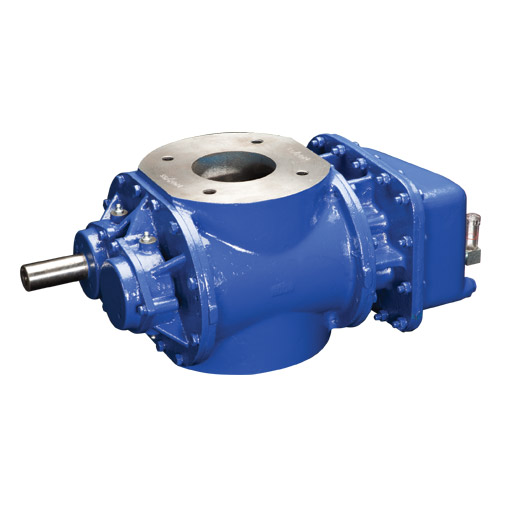

SR035

Highlights

Model No.	SR035
Specification	Twin Lobe Blower
Gear Center mm.	90.0 mm
Swept Vol. Per Rev. lit/rev.	3.5 lit/rev.
Air Flow m³/hr	90-700 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	4000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	154	0.7	131	1.3	113	1.8	98	2.4	85	3
1500	253	1.1	230	1.9	213	2.8	198	3.7	185	4.5
2000	352	1.4	330	2.6	313	3.8	298	4.9	285	6.1
2500	451	1.9	429	3.3	413	4.8	398	6.2	386	7.7
3000	550	2.3	529	4	513	5.8	498	7.5	486	9.3
3500	649	2.7	628	4.8	613	6.8	598	8.9	586	10.9
4000	748	3.2	728	5.5	713	7.9	698	10.2	686	12.6

Pressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	74	3.6	63	4.2	53	4.7	44	5.3	35	5.9
1500	174	5.4	164	6.3	154	7.2	144	8	135	8.9
2000	274	7.3	264	8.4	254	9.6	244	10.8	235	11.9
2500	375	9.1	364	10.6	354	12.1	345	13.5	336	15
3000	475	11	465	12.8	455	14.5	445	16.3	436	18
3500	575	13	565	15	555	17	545	19.1	563	21.1
4000	675	14.9	665	17.2	655	19.6	646	21.9	637	24.3

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	151	0.7	121	1.3	94	1.8	67	2.4	36	3
1500	250	1	221	1.9	194	2.8	168	3.6	136	4.5
2000	349	1.4	321	2.6	295	3.7	268	4.9	236	6
2500	448	1.8	421	3.3	395	4.7	368	6.1	337	7.5
3000	547	2.2	520	4	495	5.7	468	7.4	437	9.1
3500	646	2.7	620	4.7	595	6.7	569	8.7	537	10.7
4000	745	3.1	720	5.4	695	7.7	669	10	638	12.3
