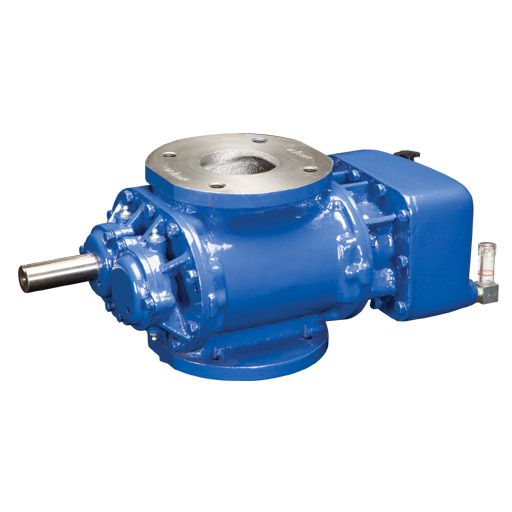

SR017

Highlights

Model No.	SR017
Specification	Twin Lobe Blower
Gear Center mm.	70.5 mm
Swept Vol. Per Rev. lit/rev.	1.7 lit/rev.
Air Flow m³/hr	20-320 m³/hr
Max. Pressure m bar	760 m bar
Max.Speed rpm	4000 rpm

Pressure Data

Pressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	71	4.0	53	0.6	38	0.9	26	1.2	16	1.5
1500	121	0.5	103	1	88	1.4	77	1.9	66	2.3
2000	171	0.7	153	1.3	139	1.9	127	2.5	117	3.1
2500	221	1	204	1.7	189	2.4	178	3.2	168	3.9
3000	271	1.2	254	2.1	240	2.9	228	3.8	218	4.7
3500	321	1.4	304	2.4	290	3.5	279	4.5	269	5.5
4000	372	1.6	354	2.8	341	4	330	5.2	319	6.4

Pressure RISE mbar	600 mbar		700 mbar
Blower speed rpm	m³/h	KW	m³/h	KW
1000	7	1.8
1500	57	2.7	49	3.2
2000	108	3.7	100	4.3
2500	159	4.6	150	5.4
3000	209	5.6	201	6.5
3500	260	6.6	252	7.6
4000	311	7.5	302	8.7

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	69	0.3	45	0.6	23	0.9	2	1.2	-	-
1500	119	0.5	95	1	74	1.4	52	1.8	-	-
2000	169	0.7	146	1.3	124	1.9	103	2.5	-	-
2500	219	0.9	196	1.7	175	2.4	154	3.1	131	3.9
3000	269	1.2	247	2	226	2.9	204	3.8	181	4.7
3500	319	1.4	297	2.4	276	3.4	255	4.4	232	5.5
4000	369	1.6	347	2.8	327	4	305	5.1	283	6.3
