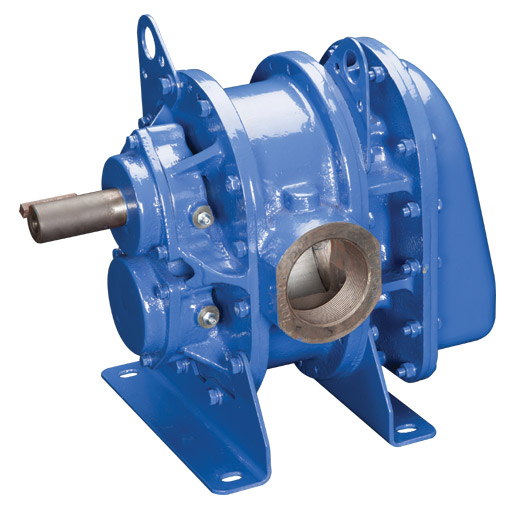

SR015

Highlights

Model No.	SR015
Specification	Twin Lobe Blower
Gear Center mm.	90.0 mm
Swept Vol. Per Rev. lit/rev.	1.5 lit/rev.
Air Flow m³/hr	20-290 m³/hr
Max. Pressure m bar	1035 m bar
Max.Speed rpm	4000 rpm

Pressure Data

ressure RISE mbar	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1500	104	0.6	84	0.9	69	1.3	58	1.7	48	2.1
2000	149	0.8	129	1.3	115	1.6	103	2.3	94	2.9
2500	194	1	175	1.6	160	2.3	149	3	139	3.6
3000	239	1.2	220	2	205	2.8	194	3.6	185	4.4
3500	284	1.4	265	2.4	251	3.3	240	4.2	230	5.1
4000	329	1.7	310	2.7	296	3.8	285	4.9	276	5.9

ressure RISE mbar	600 mbar		700 mbar		800 mbar		900 mbar		1000 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1500	39	2.5	31	2.9	25	3.3	18	3.7
2000	85	3.4	77	3.9	70	4.5	64	5
2500	130	4.3	123	4.9	116	5.6	109	6.3	104	6.9
3000	176	5.2	168	6	161	6.8	155	7.6	149	8.4
3500	221	6.1	214	7	207	7.9	200	8.9	195	9.8
4000	267	7	259	8.1	253	9.1	246	10.2	241	11.2

Vacuum Data

Vacuum mbar	-100 mbar		-200 mbar		-300 mbar		-400 mbar		-500 mbar
Blower speed rpm	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW	m³/h	KW
1000	56	0.4	36	0.6	10.0	0.9	34	-	-	-
1500	101	0.5	76	0.9	55	1.3	-	-	-	-
2000	147	0.7	122	1.3	100	1.8	77	2.3	-	-
2500	192	1.0	167	1.6	146	2.3	123	2.9	-	-
3000	237	1.2	212	2.0	191	2.7	168	3.5	150	4.3
3500	280	1.4	256	2.3	235	3.2	214	4.1	198	5.2
4000	327	1.6	303	2.7	282	3.7	259	4.8	238	5.8
