SR010

Highlights

Model No.	SR010

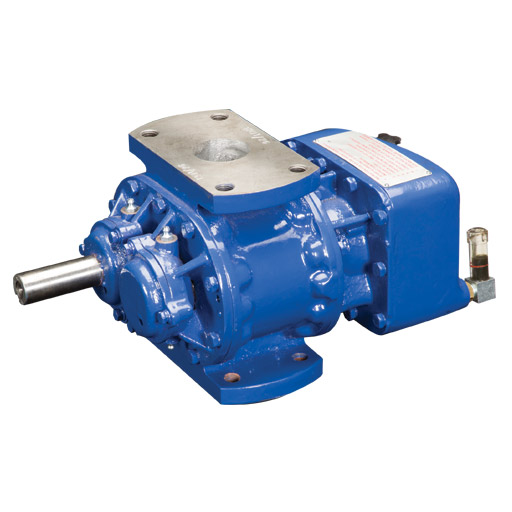

Specification	Twin Lobe Blower
Gear Center mm.	70.5 mm
Swept Vol. Per Rev. lit/rev.	1.0 lit/rev.
Air Flow m³/hr	20-150 m³/hr
Max. Pressure m bar	800 m bar
Max.Speed rpm	4000 rpm

Pressure Data

Speed RPM	100 Q/KW	200 Q/KW	300 Q/KW	400 Q/KW	500 Q/KW	600 Q/KW	700 Q/KW	760 Q/KW
1000 DeIT. deg C	-/-	33/0.5 37	25/0.8 64	18/1.2 100	16/1.6 132
1500 DeIT. deg C	63/0.3 15	52/0.6 32	40/1 55	28/1.3 86	23	0.9	2	1.2
2000 DeIT. deg C	119	0.5	95	1	74	1.4	52	1.8
2500 DeIT. deg C	169	0.7	146	1.3	124	1.9	103	2.5
3000 DeIT. deg C	219	0.9	196	1.7	175	2.4	154	3.1
3500 DeIT. deg C	269	1.2	247	2	226	2.9	204	3.8
4000 DeIT. deg C	319	1.4	297	2.4	276	3.4	255	4.4
