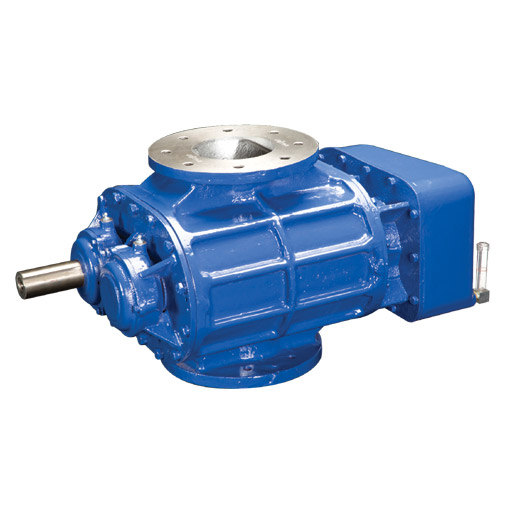

KSR900

Highlights

Model No.	KSR900
Specification	Twin Lobe Blower
Gear Center mm.	300.0 mm
Swept Vol. Per Rev. lit/rev.	90 lit/rev.
Air Flow m³/hr	5800-11000 m³/hr
Max. Pressure m bar	700 m bar
Max.Speed rpm	1500 rpm

Projected Test Bench Data

Blower speed rpm	100 mbar		200 mbar		300 mbar		400 mbar		500 mbar
	Q	KW	Q	KW	Q	KW	Q	KW	Q	KW
1550	10885	50	10700	73	10554	104	10400	137	10250	169
1400	9740	45	8670	66	9416	94	9275	124	9112	153
1300	8933	41	8778	61	8657	87	8470	115	8354	142
1200	8240	38	8100	56	7898	80	7720	105	7595	131
1100	7560	35	7430	52	7150	74	6989	97	6875	121
1000	6870	33	6750	47	6381	67	6235	88	6077	109

Blower speed rpm	600 mbar		700 mbar
	Q	KW	Q	KW
1550	10102	202	10000	235
1400	8980	183	8871	212
1300	8230	170	8100	197
1200	7490	157	7354	182
1100	6700	145	6580	168
1000	5900	131	5835	152
