STP200

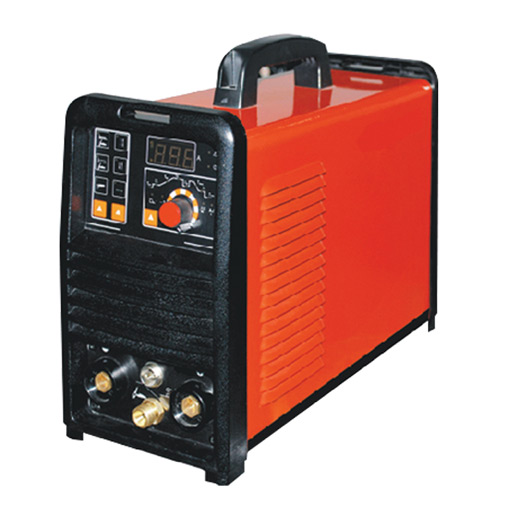

200A Arc Pulse TIG Welding Machine
| Model No. | STP200 |
|---|---|
| Specification | 200A Arc Pulse TIG Welding Machine |
| Rated Input | AC415V+/- 15% Three phase, 50/60HZ |
| Rated Input Current | 9.5Amp |
| No Load Voltage | 70V |
| Rated Voltage | 20v |
| Post Flow Time | 0-10s |
| Duty Cycle I max (25degC) | 60% |
| Duty Cycle Amp 100%(25degC) | 175A |
| No Load Loss | 40W |
| Arc Starting | HF |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP23 |
| Insulation Class | F |
| Welding Thickness | 0.3 – 12.0mm |
| Net Weight | 19Kg |
