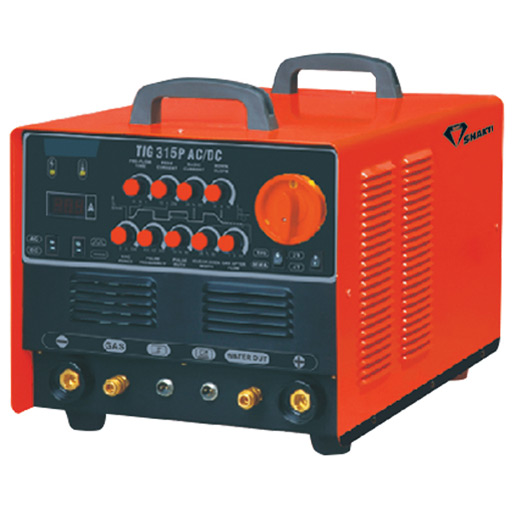

STA315
315A Amp AC/DC/PULSE TIG Welding Machine
| Model No. | STA315 |
|---|---|
| Specification | 315A Amp AC/DC/PULSE TIG Welding Machine |
| Rated Input | AC415V+/- 15% Three phase, 50/60HZ |
| Rated Input Current | 19Amp |
| Power Capacitance | 8.9KVA |
| Rated Output Current | 300Amp |
| Arc Force | 0-60Amp |
| No Load Voltage | 45V |
| Working Voltage | 22V |
| Pre Flow Time | 0-2S |
| Out Put Frequency | 60HZ |
| Clean Width | 20-80% |
| Slope Down Time | 0-10S |
| Post Flow Time | 0-10S |
| Base Current | 10-90% |
| Pulse Frequency | 0.5-300HZ |
| Remote Control | Yes |
| Duty Cycle I max (25degC) | 60% |
| Duty Cycle Amp 100%(25degC) | 240A |
| Arc Starting | HF Vibration |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP23 |
| Insulation Class | F |
| Welding Thickness AL | 0.5 – 15mm |
| Size | 560x365x355mm |
| Net Weight | 37Kg |
