STA200

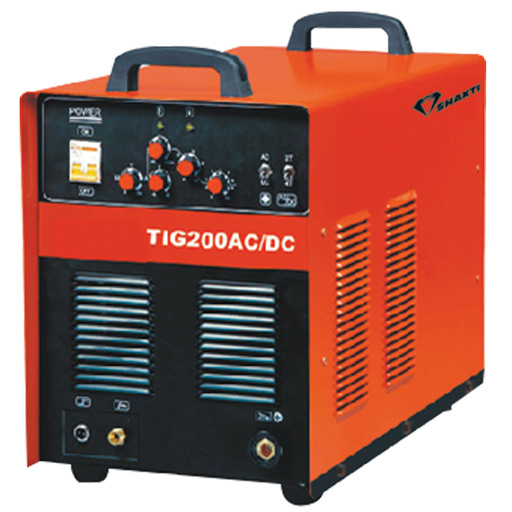

200A Amp AC/DC TIG Welding Machine
| Model No. | STA200 |
|---|---|
| Specification | 200A Amp AC/DC TIG Welding Machine |
| Rated Input | AC230V+/- 15% Single phase, 50/60HZ |
| Rated Input Current | 20Amp |
| Power Capacitance | 4.5KVA |
| Rated Input Current | 185Amp |
| Arc Force | 0-60Amp |
| No Load Voltage | 56V |
| Working Voltage | 17.4V |
| Rated Voltage | 20V |
| Pre Flow Time | 0-2s |
| Out Put Frequency | 60HZ |
| Clean Width | 20-80% |
| Slope Down Time | 0-5S |
| Post Flow Time | 2-100S |
| Remote Control | No |
| Duty Cycle I max (25degC) | 60% |
| Duty Cycle Amp 100%(25degC) | 150A |
| No Load Loss | 40W |
| Arc Starting | HF Vibration |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP23 |
| Insulation Class | F |
| Welding Thickness AL | 0.3 – 10mm |
| Net Weight | 20Kg |
