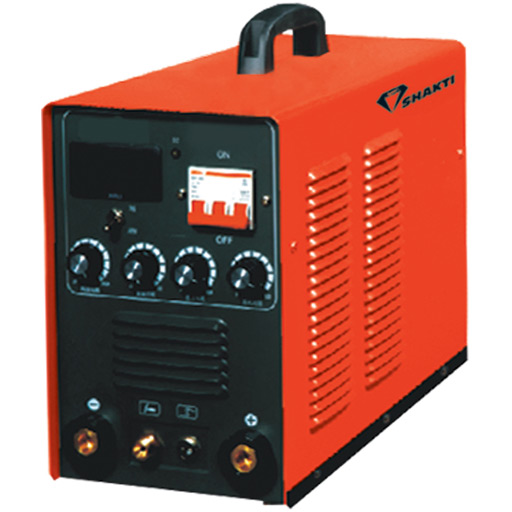

ST300
300A TIG Welding Machine
| Model No. | ST300 |
|---|---|
| Specification | 300A TIG Welding Machine |
| Rated Input | AC415V+/- 15% Three phase, 50/60HZ |
| Rated Input Power | 12.5KVA |
| Rated Input Current | 42Amp |
| Rated Output Current | 10-300 Amp/V |
| Rated Voltage | 22v |
| Post Flow Time | 5S |
| Duty Cycle I max (25degC) | 60% |
| Duty Cycle Amp 100%(25degC) | 230A |
| No Load Loss | 40w |
| Arc Starting | HF |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP23 |
| Insulation Class | F |
| Welding Thickness | 0.3 – 12.0mm |
| Net Weight | 19Kg |
