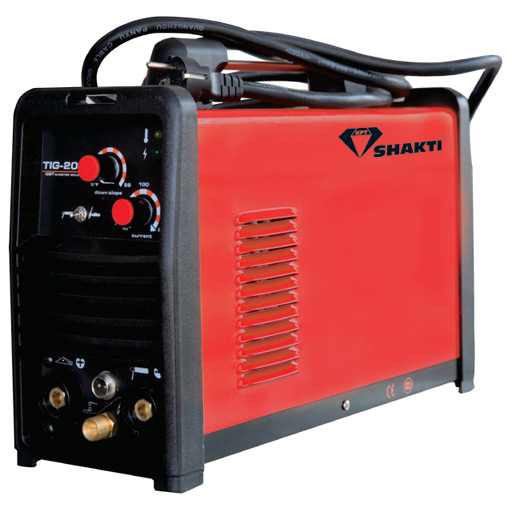

ST200
200A TIG Welding Machine
| Model No. | ST200 |
|---|---|
| Specification | 200A TIG Welding Machine |
| Rated Input | AC230V+/- 15% Three phase, 50/60HZ |
| Rated Input Current | 30.8Amp |
| Rated Input Power | 7.1KVA |
| Rated Output Current | 200 ( TIG) /160 (MMA)Amp |
| Welding Current Range | 10-200 (TIG) /10-160 (MMA)Amp |
| Arc Force Current | 20Amp |
| No-Load Voltage | 73 (TIG)/15(MMA)V |
| Duty Cycle I max (40degC) | 35% |
| Duty Cycle Amp 100%(40degC) | 120A |
| Duty Cycle Amp 60%(40degC) | 155A |
| Down Slope Time | 0-5s |
| Post Flow Time | 3s |
| Power Factor | 0.7 |
| Protection Class | IP21S |
| Insulation Class | F |
| Cooling Mode | air cooling |
| Welding Thickness | 0.3 – 8.0mm |
| Net Weight | 7.8Kg |
| Dimension | 400x145x300mm |
