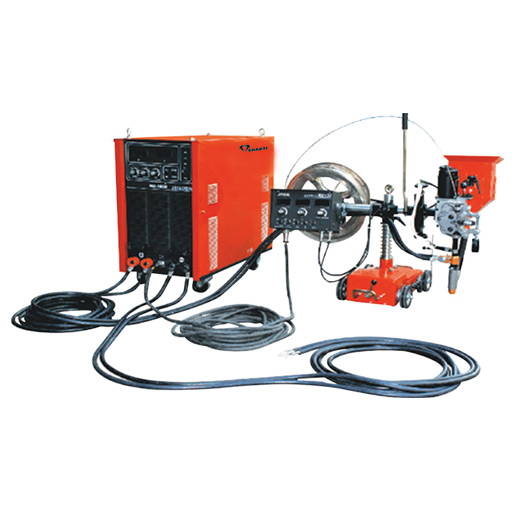

SS1000
1000 Amp Saw
| Model No. | SS1000 |
|---|---|
| Specification | 1000 Amp Saw |
| Rated Input | AC415V+-15% Three phase,50/60HZ |
| Rated Input Current | 80Amp |
| Rated Input Capacity | 52KVA |
| Current Adjustable Range | 100-1000Amp |
| Output | 100A/20V-1000A/50V |
| No Load Voltage U20 | 83V |
| No Load Primary Current | 10 : < 1 I |
| No Load Loss P10 | < 500W |
| Voltage Adjustable Range | U2 (V): 20-50 |
| Duty Cycle I max (40degC) | 100% |
| Duty Cycle Amp 100%(40degC) | 100A |
| Efficiency | >= 0.85 rated conditions% |
| Power Factor | >=0.9 |
| Arc Starting | LF/HF |
| Compressed Air (for Carbon Steel) | 0.4-0.6Mpa,7800L/h |
| Compressed Air (for Stainless Steel) | 0.4-0.6Mpa,1200L/h |
| Maximum Cutting Thickness | 55mm |
| Quality Cutting Thickness | 38mm |
| Protection Class | IP21S |
| Type of Cooling | Air cooling |
| Duty Cycle | 100% |
| Wire Feeding Speed | 0.5-2.5(m/min) |
| Tractor Traveling Speed | 15-72(m/h) |
| Size | 865x450x820 |
| Net Weight | 103Kg |
