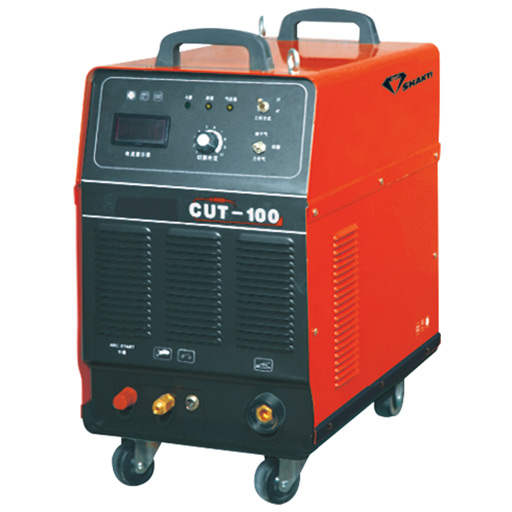

SC100
100A Amp Plasma Cutter
| Model No. | SC100 |
|---|---|
| Specification | 100A Amp Plasma Cutter |
| Rated Input | AC415V+/- 10% Three phase, 50/60HZ |
| Rated Input Current | 28.3Amp |
| Rated Input Capacity | 19.6KVA |
| Rated Output | 100/120 Amp/V |
| Welding Current Range | 20-100Amp |
| No Load Voltage | 350V |
| Duty Cycle I max (40degC) | 100% |
| Duty Cycle Amp 100%(40degC) | 100A |
| Efficiency | 88% |
| Power Factor | 0.8 |
| Arc Starting | LF/HF |
| Compressed Air (for Carbon Steel) | 0.4-0.6Mpa,7800L/h |
| Compressed Air (for Stainless Steel) | 0.4-0.6Mpa,1200L/h |
| Maximum Cutting Thickness | 55mm |
| Quality Cutting Thickness | 38mm |
| Protection Class | IP21S |
| Insulation Class | F |
| Size | 610x325x575mm |
| Net Weight | 32Kg |
