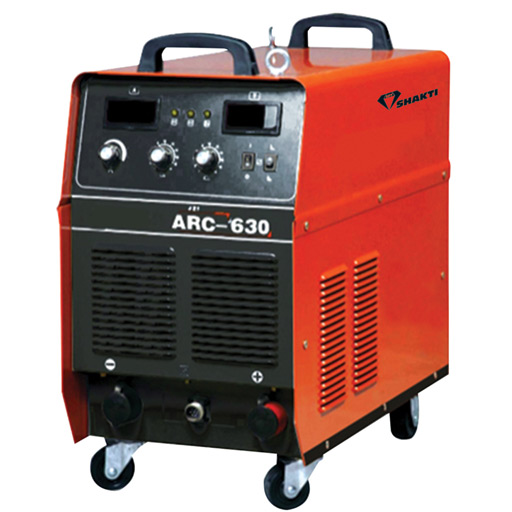

SA630
630A Arc Welding Machine
| Model No. | SA630 |
|---|---|
| Specification | 630A Arc Welding Machine |
| Rated Input | AC415V+/- 15% Three phase, 50/60HZ |
| Rated Input Current | 50.6Amp |
| Rated Output | 630A/44V Amp/V |
| Welding Current Range | 25-630Amp |
| Arc Force Current | 20-200Amp | No-Load Voltage | 80V |
| Arc Starting Current | 75-480Amp |
| Arc Starting Time | 70/150/200M/S |
| Duty Cycle I max (40degC) | 60% |
| Duty Cycle Amp 100%(40degC) | 480A |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP21S |
| Insulation Class | F |
| Electrode Diameter | 2.5 – 6.0mm |
| Electrode Diameter | Gouging <=dia.10mm |
| Net Weight | 52Kg |
