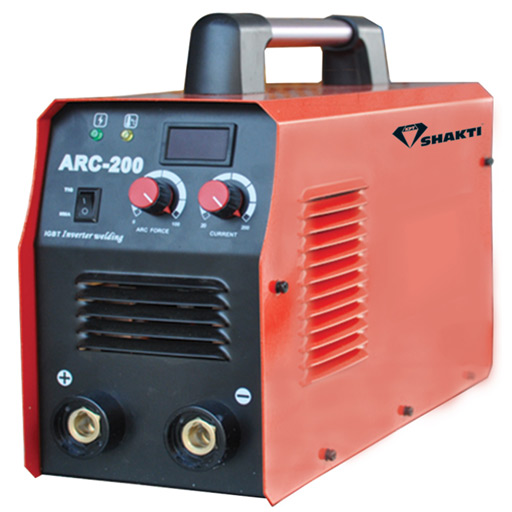

SA200
200A Arc Welding Machine
| Model No. | SA200 |
|---|---|
| Specification | 200A Arc Welding Machine |
| Rated Input | AC230V+/- 15% Single phase, 50/60HZ |
| Rated Input Power | 9.4KVA |
| Rated Input Current | 41Amp |
| Welding Current Range | 10-200Amp |
| No-Load Voltage | 70V |
| Duty Cycle I max (40degC) | 30% |
| Duty Cycle Amp 100%(40degC) | 110A |
| Duty Cycle Amp 60%(40degC) | 145A |
| Efficiency | 85% |
| Power Factor | 0.70 |
| Protection Class | IP21S |
| Insulation Class | F |
| Electrode Diameter | 1.6 – 4.0mm |
| Dimension | 372x150x220mm |
| Net Weight | 8.2Kg |
